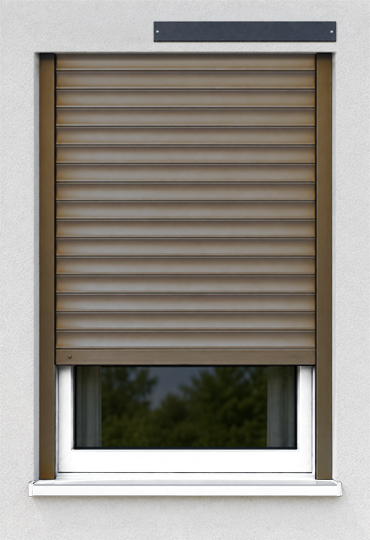

Exterior shading systems not only improve the lighting and thermal conditions of buildings, but also contribute significantly to energy savings. In addition to practical benefits, the exterior roller shutters add aesthetic value for family homes and in modern buildings they can even serve as a distinctive architectural element.
This system is one of the most environmentally friendly and energy-saving ways to control roller shutters. The motor is powered by a long-life battery, which is continuously recharged by a solar panel that works in various weather conditions.
| Lamella | M317 | MY442 |
|---|---|---|
| Material | Al | Al |
| Cross-section |  |
 |
| cover height | 37 | 42 |
| thickness | 7,6 | 9,3 |
| thickness of material | 0,3 | 0,3 |
| weight | 2,8 kg/m2 | 2,85 kg/m2 |
| max. width | 2900 | 4000 |
| max. area | 6,5 m2 | 8,5 m2 |
Diameter of the shaft: 60 mm
| Al lamella M317 | Al lamella MY442 | ||||
|---|---|---|---|---|---|
| lamella | guide rails | end rails | lamella | guide rails | end rail |
| 01 white 02 light grey 03 dark brown 04 light beige 07 natural 13 moss green 22 gold oak 23 light grey 27 creamy white 38 anthracite grey 84 ivory |
RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 02 light grey 03 dark brown 04 light beige 07 natural 22 golden oak 23 light grey 27 creamy white 30 Jamaica brown 38 anthracite grey 84 ivory 86 nut |
RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
