Advantages

Benefits & advantages

  • effective protection from light and heat radiation
  • protection against weather and outside noise
  • full functionality in any position of the casement
  • wind resistance class 2
  • wide selection of fabrics with various levels of light transmittance
Methods

Handling

manually
depending on opening and closing the window

Fabric selection

The materials offered for screen blinds are as follows

  • Glass fiber covered with a PVC layer
  • skelné vlákno bez obsahu PVC a halogenů
  • Polyester fiber with a PVC layer

Serge

  • Specifically weaved screen fabrics, that are very flexible and therefore suitable to interiors as well as exteriors.
  • They consist of 58,8 % PVC and 41,5 % glass fibre.

Satiné, Satiné Blackout

  • PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions.
  • In the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).

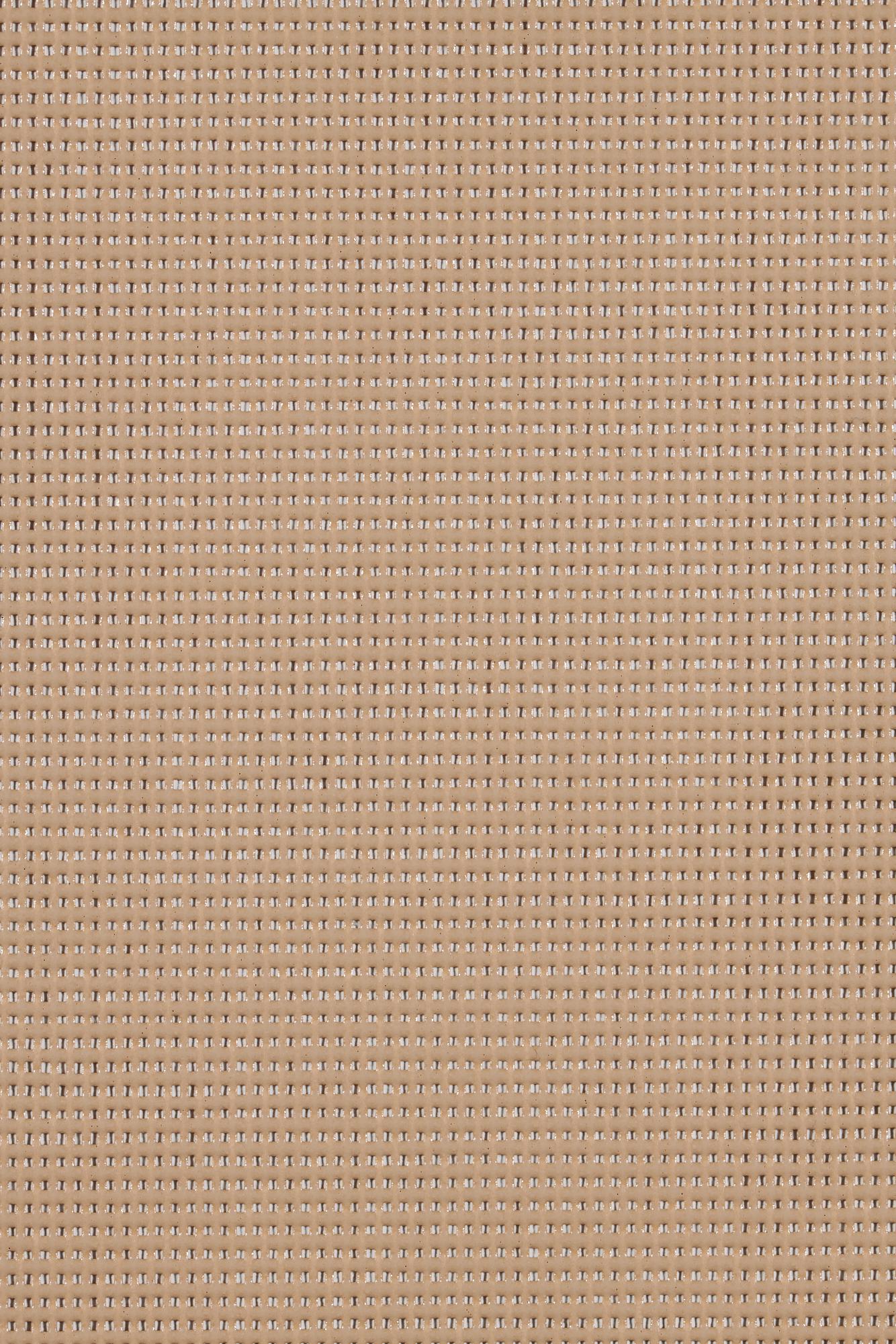

Soltis 86, 92, B92

  • The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.
  • Further advantages of the material include excellent heat--insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).
Scheme of fabric Soltis

SCR 4005

  • Internal and external use
  • Lower price with keeping high quality standard

Guaranteed dimensions

Design Width (mm) Height (mm) Guaranteed area (m2)
min max min max
handle 400 1200 500 1600 1,9

Technical parameters

Cover profile Winding drum Assembly
Business name LR 60 RR 15/1
roof roller blind is installed by attaching the box to the flashing of the roof window upper frame.
Dimension (mm)   Ø 22 mm
Material Al Al
Cross-section Řez profilu Řez profilu
Colour RAL 7016 antracitově šedá
RAL 8014 hnědá
RAL 9006 světle stříbrná
RAL 9007 dark silver
Other RAL colours upon request*
Grey

*except of plastic parts. We do not make atypical designs.

Assembly options

  • The ISOTRA SCREEN SKY roof roller blind is installed by attaching the box to the flashing of the roof window upper frame.
