Advantages

Benefits & advantages

  • manual and motor control
  • safety design
  • reduced blind noise
  • high degree of shading
  • thermoregulatory and protective effect
  • decrease in the level of outdoor noise
  • motor control from blind width of 40 cm
  • very high wind resistance
  • wireless control
  • zero electricity consumption

Blinds into Heluz lintel



Guaranteed dimensions for individual types of blinds into the lintel

Parameter Type of Blind
Cetta 60 Flexi Cetta 65 Cetta 80 Cetta 80 Flexi Cetta 80 Slim Cetta 100 Flexi Setta 65 Setta 90 Zetta 70 Zetta 90
Cord Guide rail Cord Guide rail Cord Guide rail
Min. width (mm) 600 600 600 600 600 600 600 600 600 600 600 600 600
Max. width (mm) 3850 3850 3850 3850 3850 3850 3850 3850 3850 3850 3850 3850 3850
Max. height (mm) 3300 2100 1500 1700 4000 2800 2000 5500 3700 1400 1900 1600 1900
Max. guaranteed area 8 m2  (crank control)
8 m2 (motor control)

Facade External Blinds

Emergency Safety Blinds

System STS self-supporting blind

Specifications:

  • Installation on facade,
  • suitable for all types of external blinds except for Cetta 50,
  • max. width: 4 m,
  • from 2.4 m to 4 m complemented with a reinforcing profile.

Required components:

  • self-supporting guide rail P 016/1
  • holders for self-supporting guide rail 50-70 mm P021 / 5 and 75-120 mm P021 / 6
  • sleeve
  • hanger P 002/4

Two-channel blind

Windstabil blind

Windstabil Exterior blind with higher wind resistanse class

Supportive guiding wires



Blind width (mm) Supportive guiding wires
do 1499 2 pcs (fixed to the side guiding rail)
1500 – 1999 2 pcs (fixed to the side guiding rail + 1 pc in the middle)
2000 - 3000 2 pcs (fixed to the side guiding rail + 2 pcs in the middle)

Wind resistance table

Essential characteristics Performance
Width of construction hole L (mm) L <= 2 000 2 000 < L <= 3 000 3 000 < L <= 4 000 4 000 < L <= 4 500 4 500 < L <= 5 000 5 000 < L <= 5 400
Standard EN/Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort
Wind resistance class 5 8 4 7 3 6 2 5 1 4 0 3
Max. wind speed vmax (km/h) 74 61 49 38 28 19
Max. effective height wing Hmax = 2500 mm
Šířka stavebního otvoru L (mm) L <= 2 000 2 000 < L <= 3 000 3 000 < L <= 4 000 4 000 < L <= 4 500 4 500 < L <= 5 000 5 000 < L <= 5 400
Wind resistance class 4 7 3 6 2 5 1 4 0 3 0 2
Max. wind speed vmax (km/h) 61 49 38 28 19 11
Max. effective height wing Hmax = 4000 mm
Additional thermal resistance ΔR 0,08 (m2.K/W)
Total solar energy transmittance gtot 0,032 - 0,094 (according to chosen slat colour)*

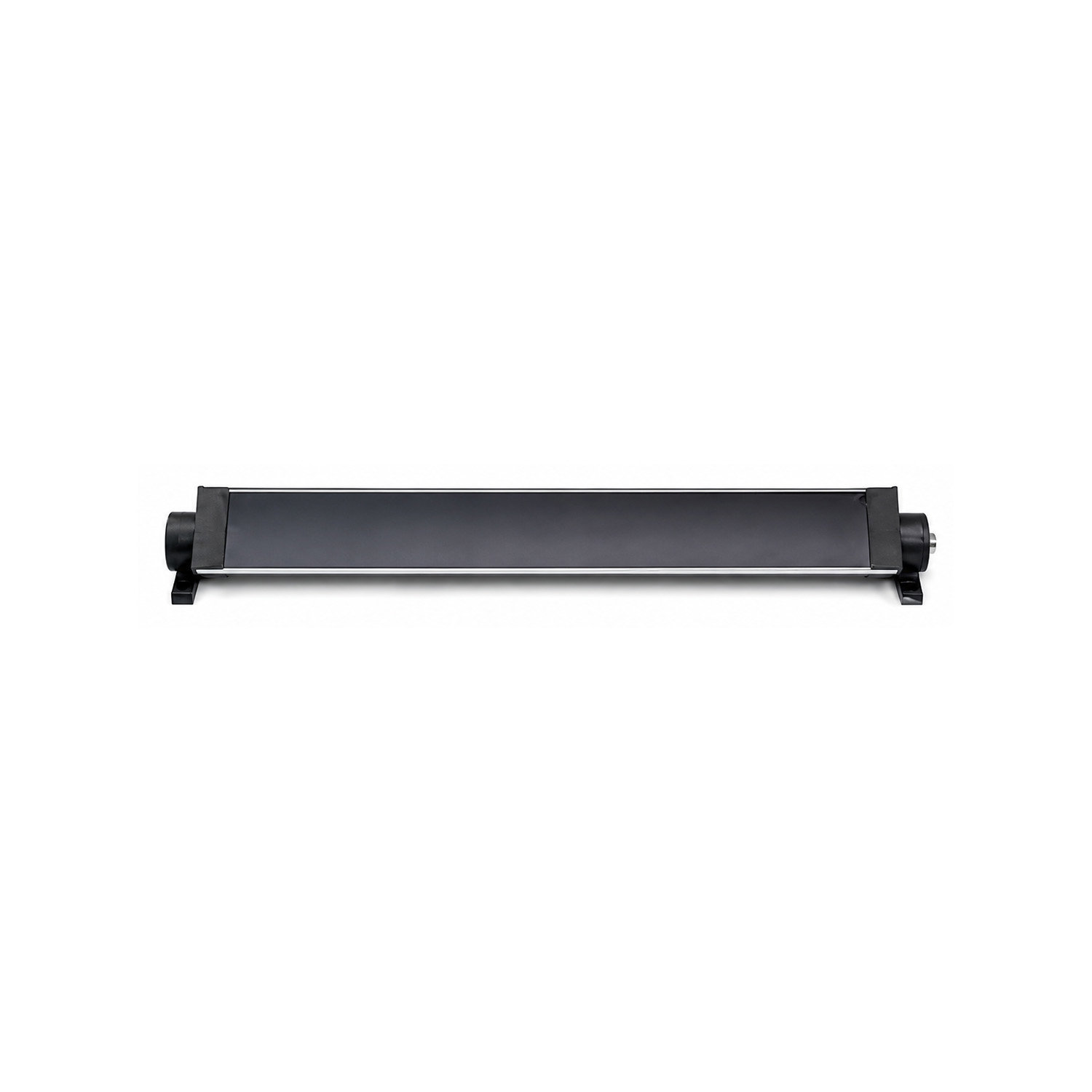

The solar-powered exterior blind

The solar set contains:

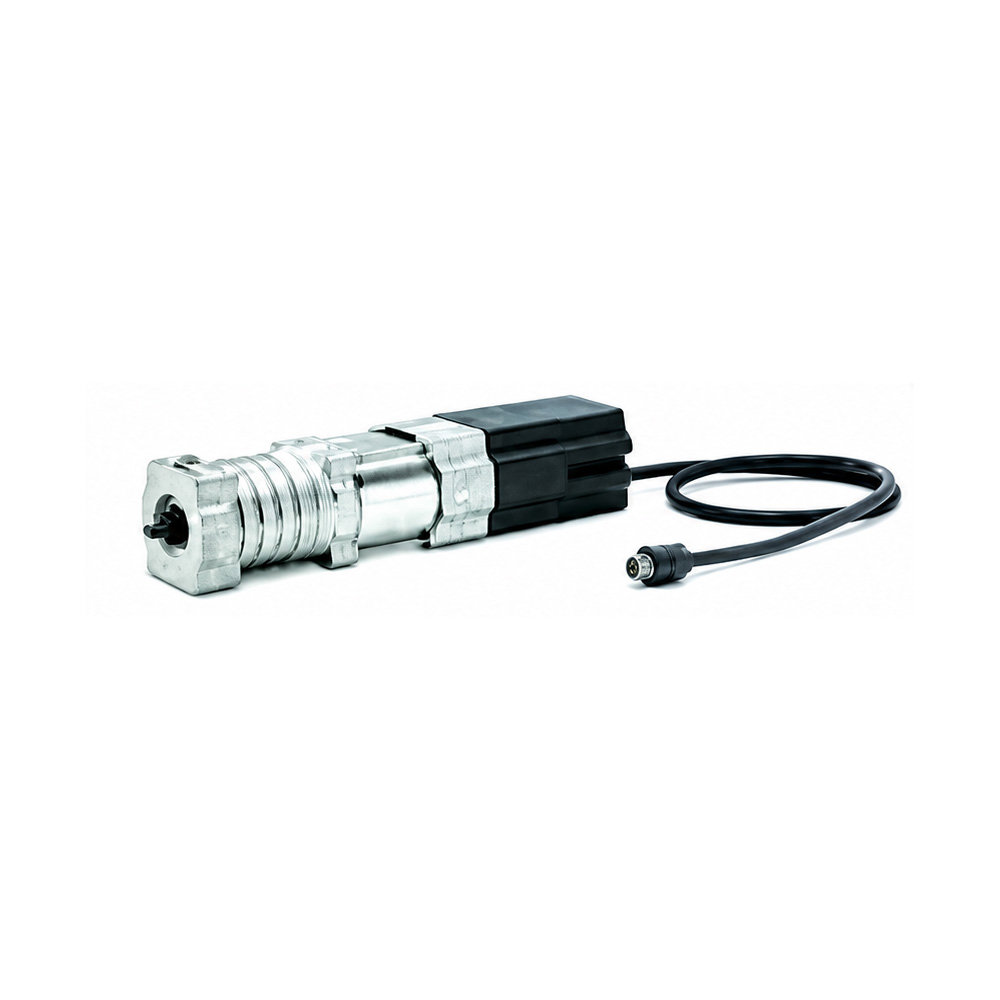

  • motor JA04 Soft DC 4Nm 33 revs 12 V

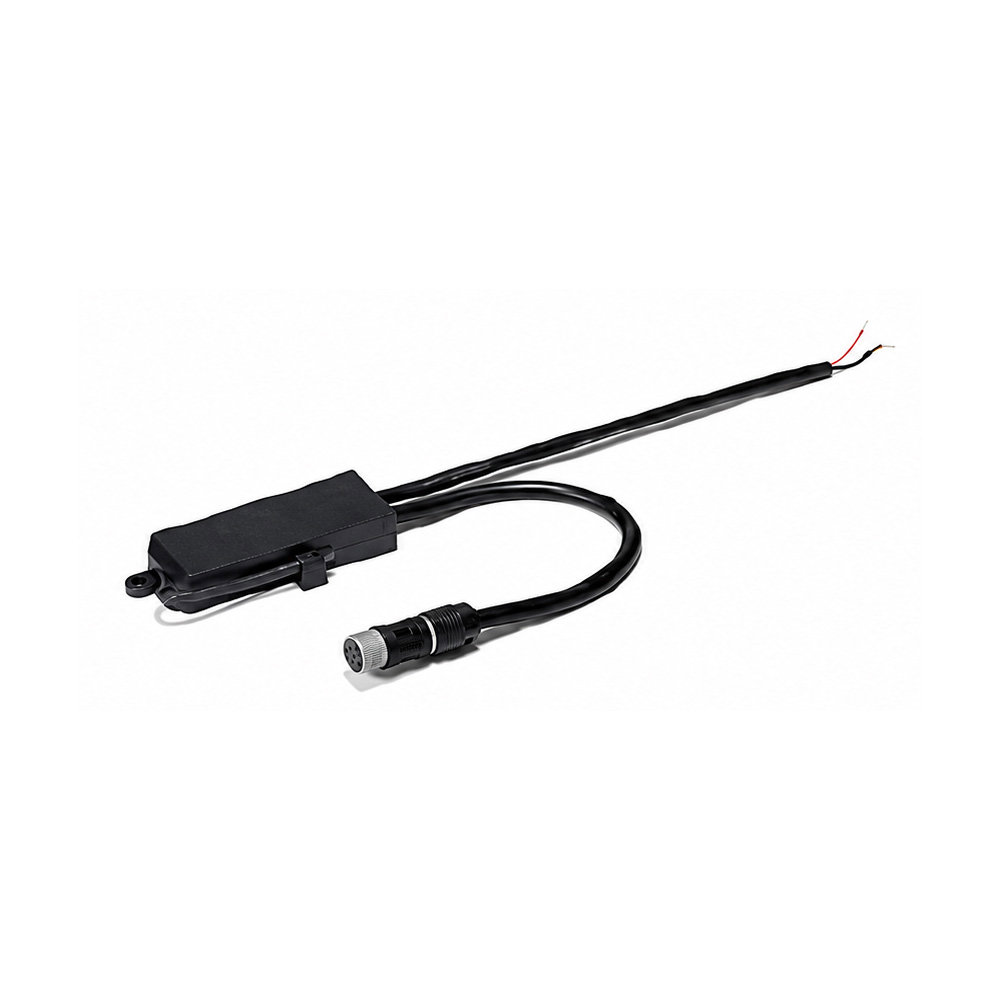

  • Combio-868 JA DC receiver
  • DC power unit
  • Quickconnect IP65

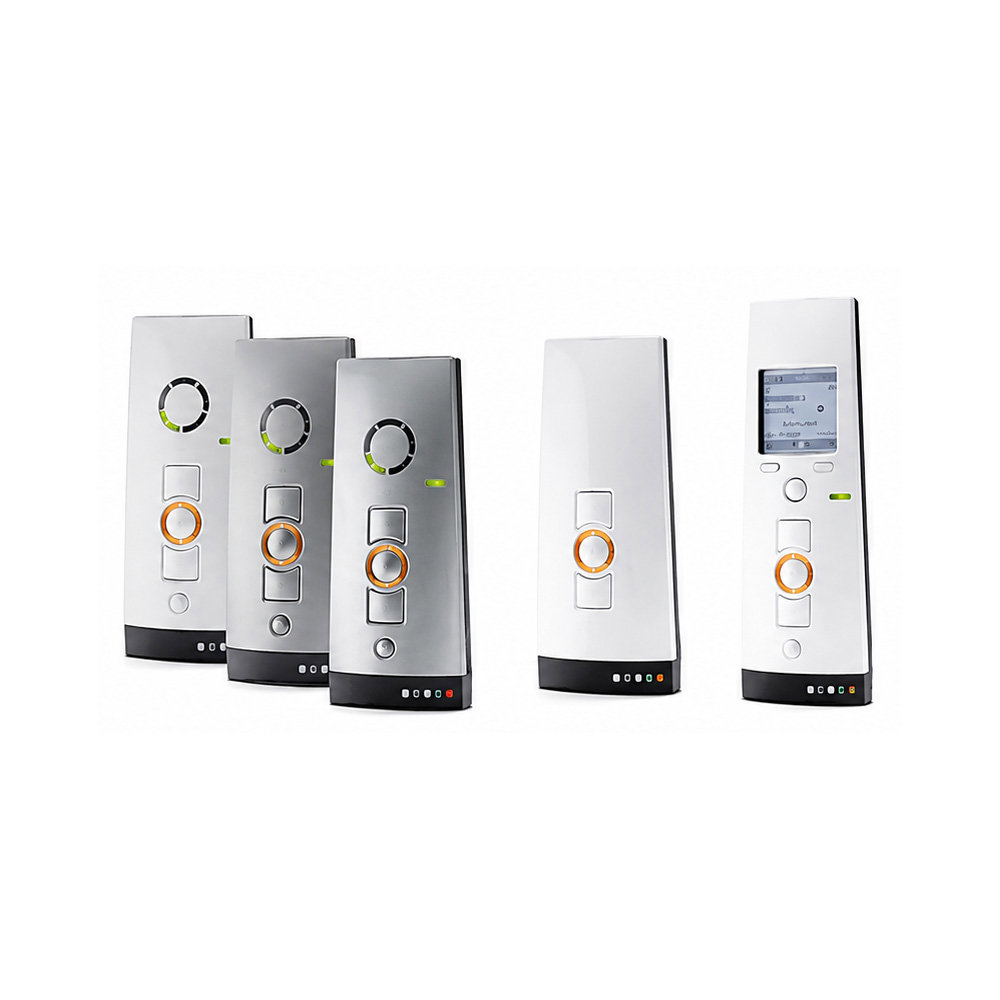

  • SoloTel2, single channel - white, silver
  • TempoTel2, 10-channel (timer + Astro) - white, silver
