Advantages

Benefits & advantages

  • modern design
  • supporting and control elements do not interfere with the interior design
  • wide range of colours of the fabrics
  • version with a classic fabric or with a day-night fabric
  • easy installation and handling
Explore

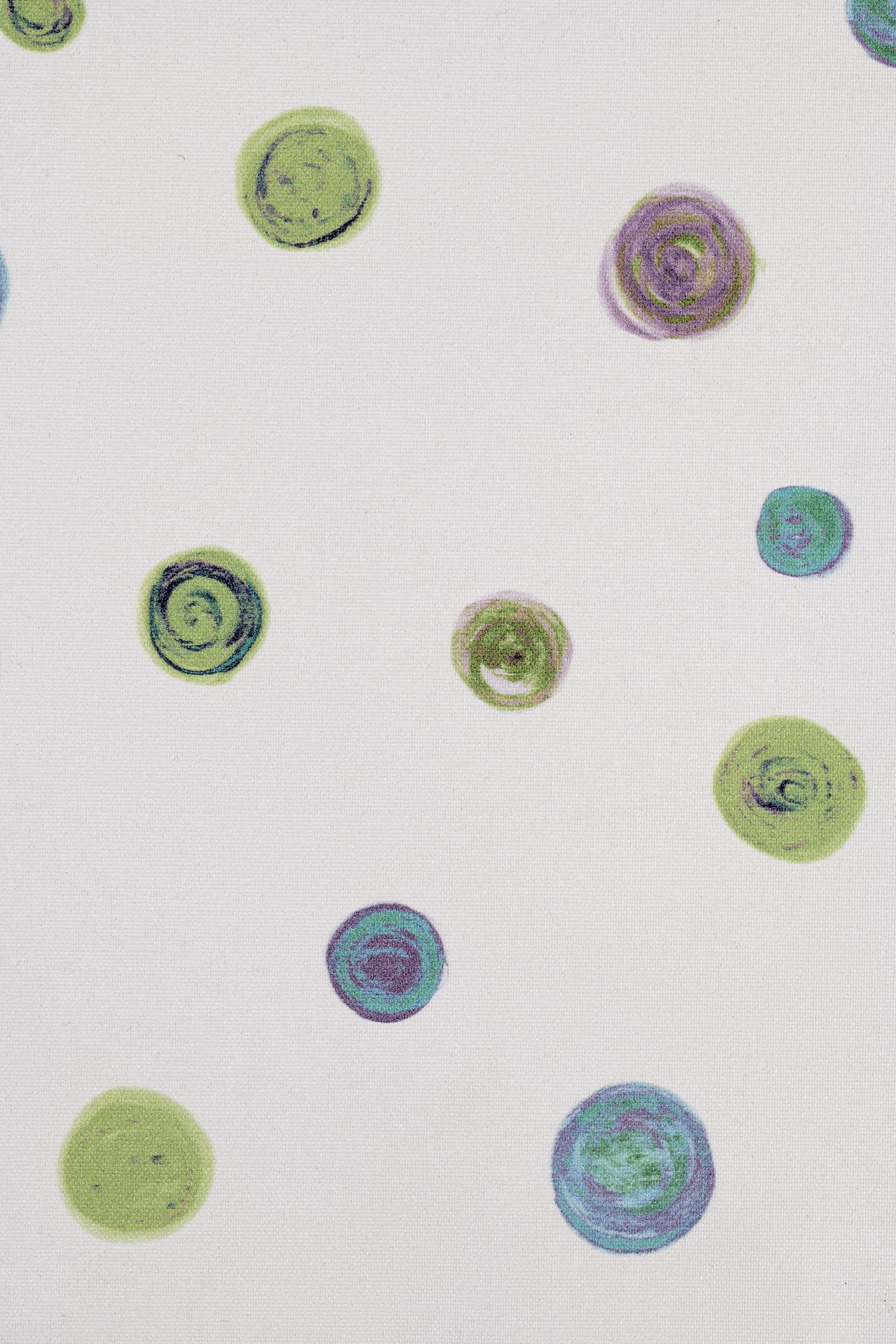

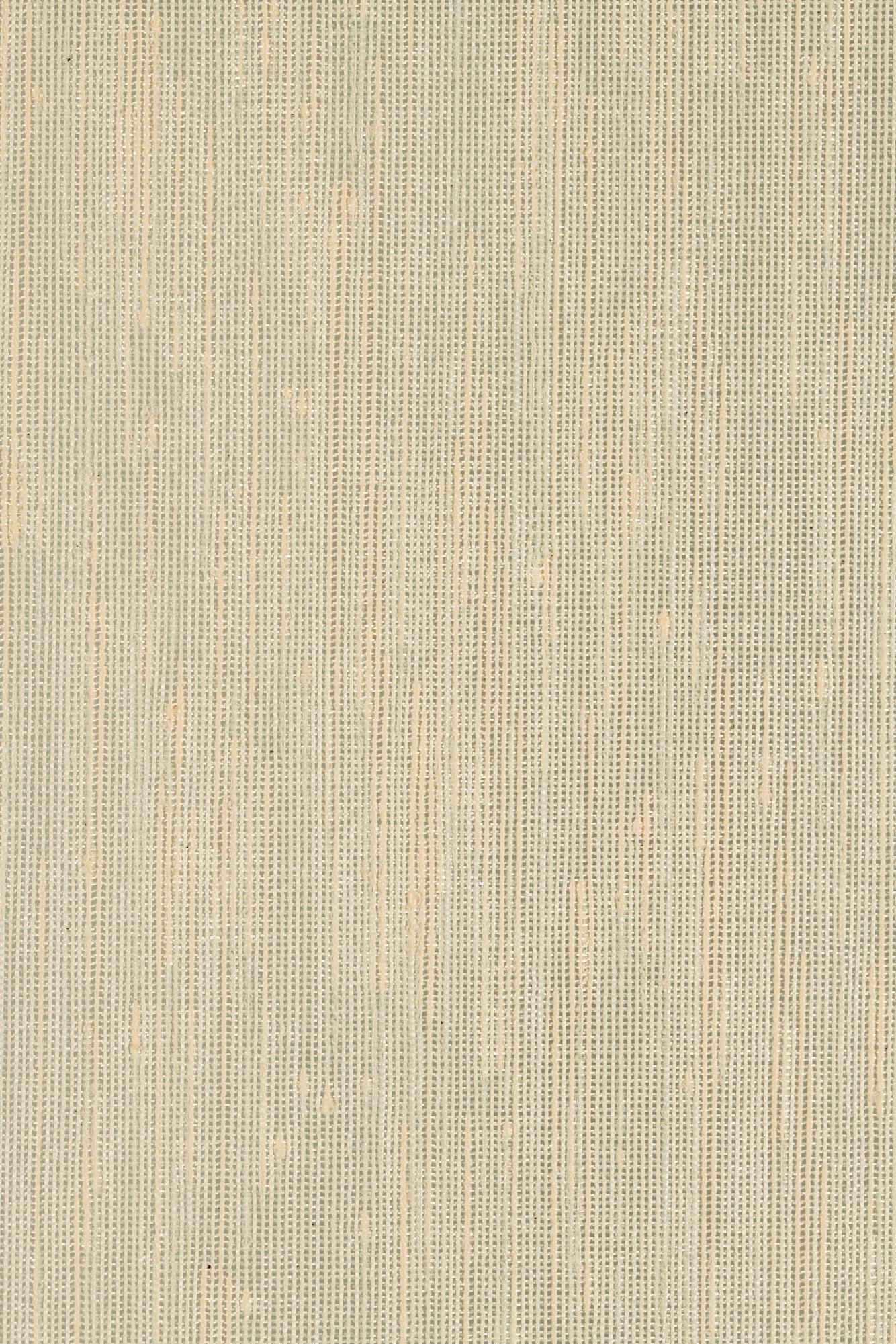

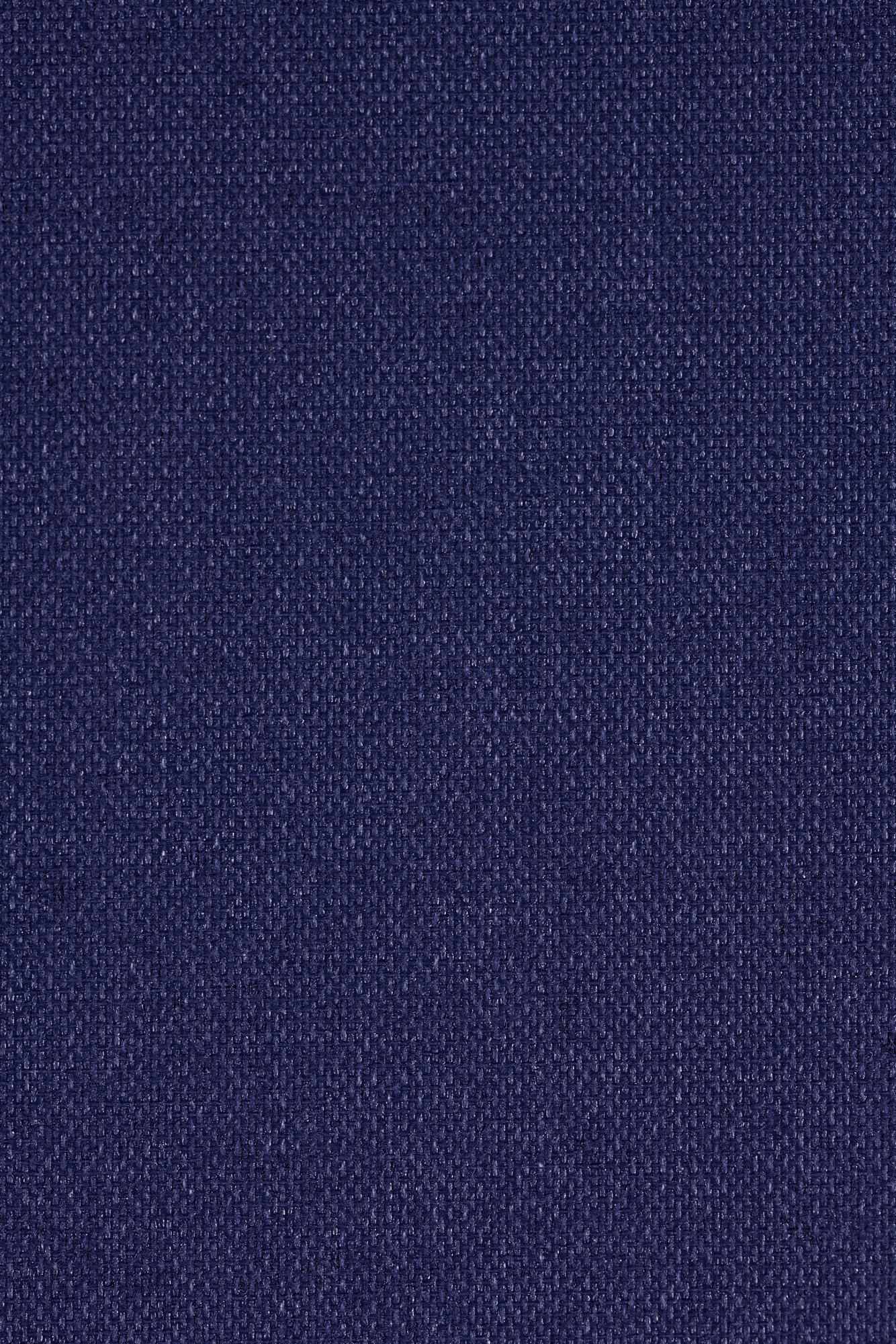

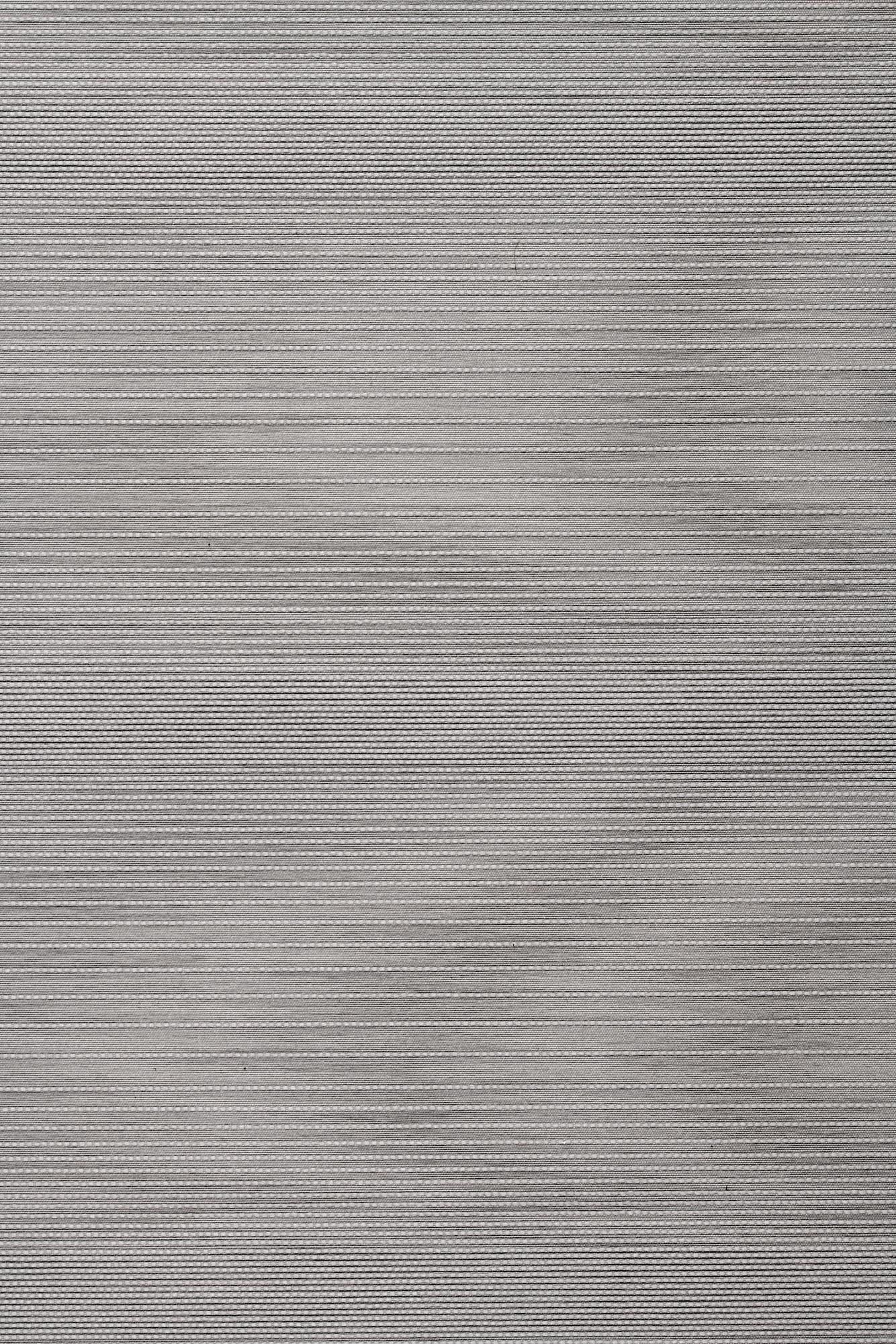

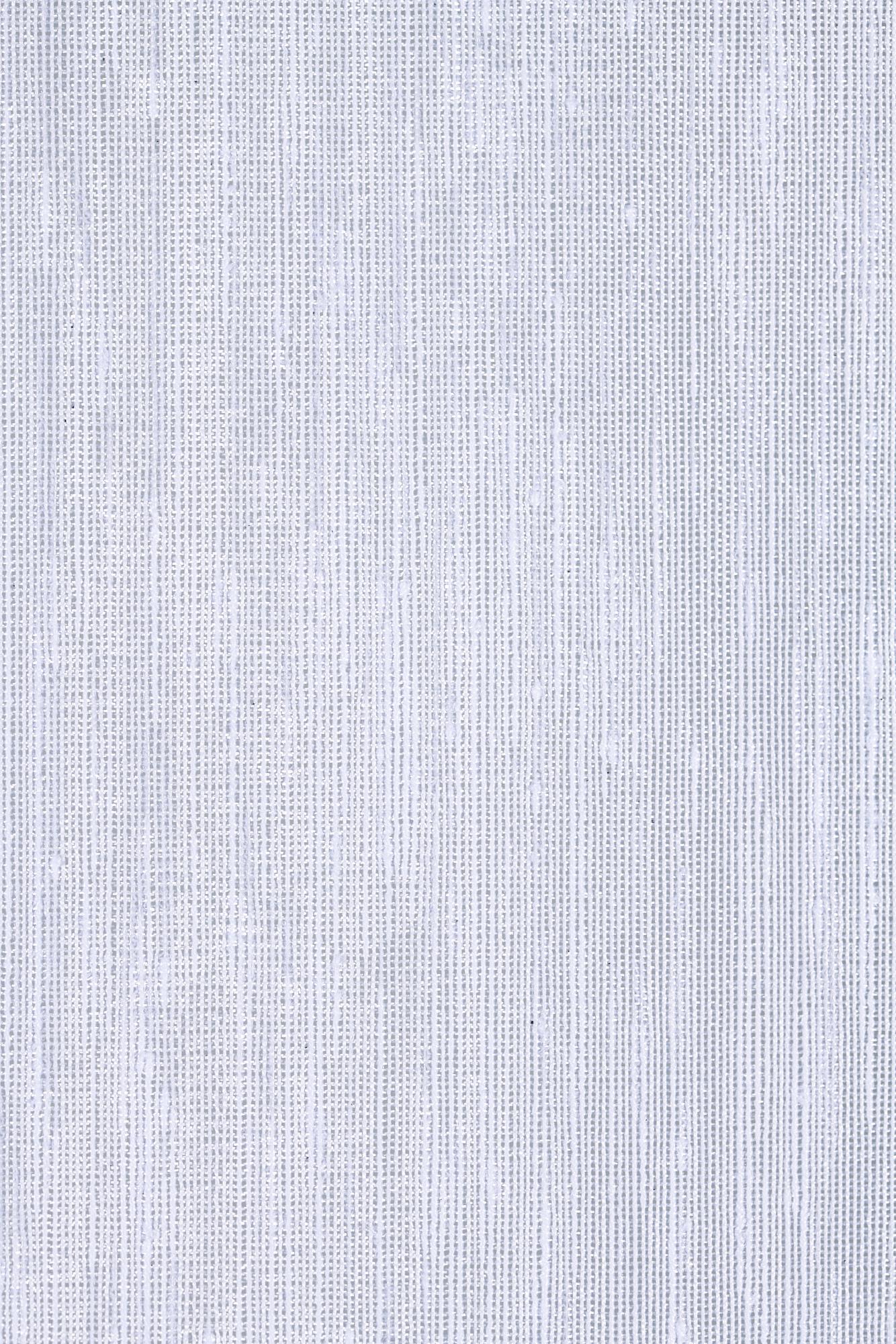

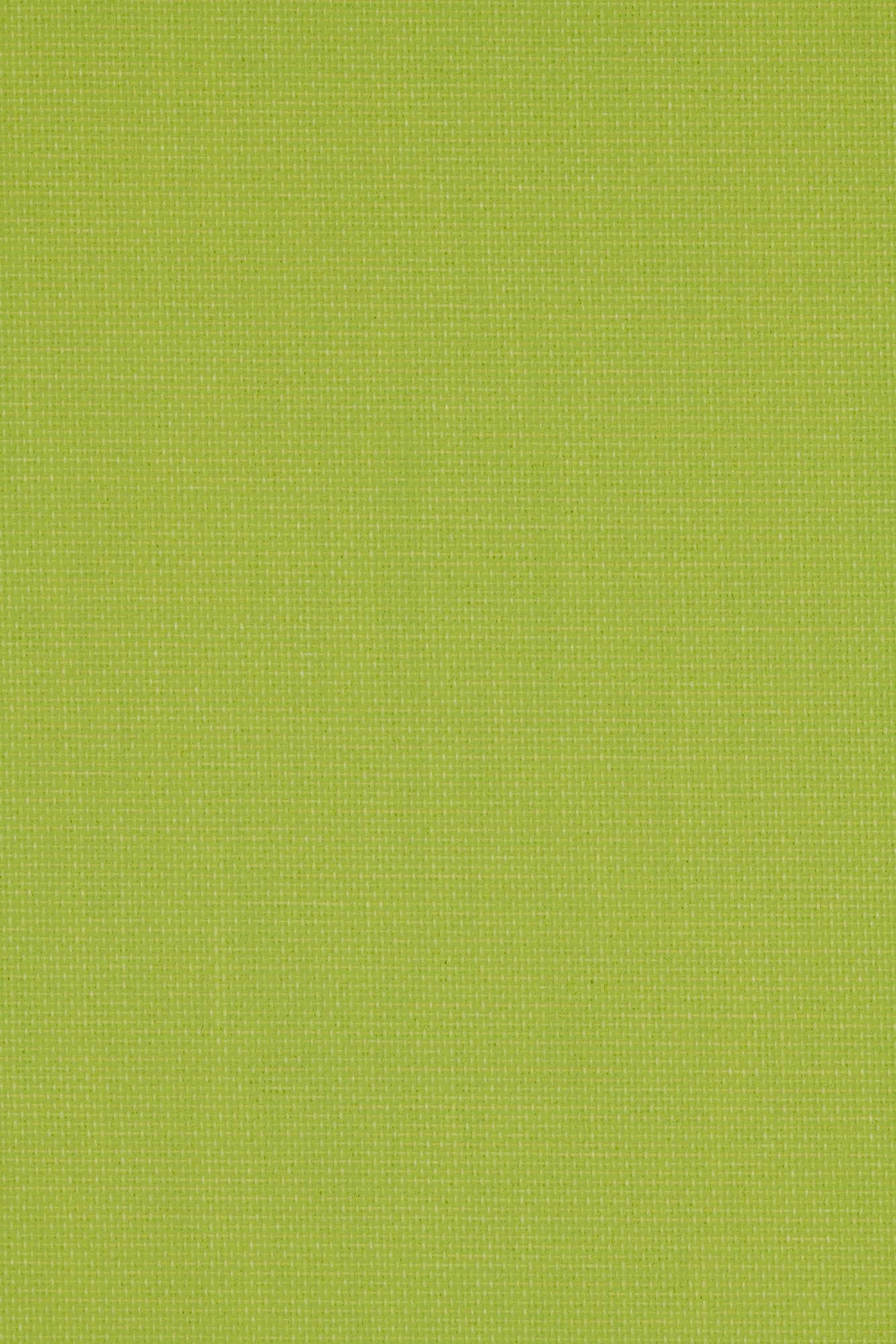

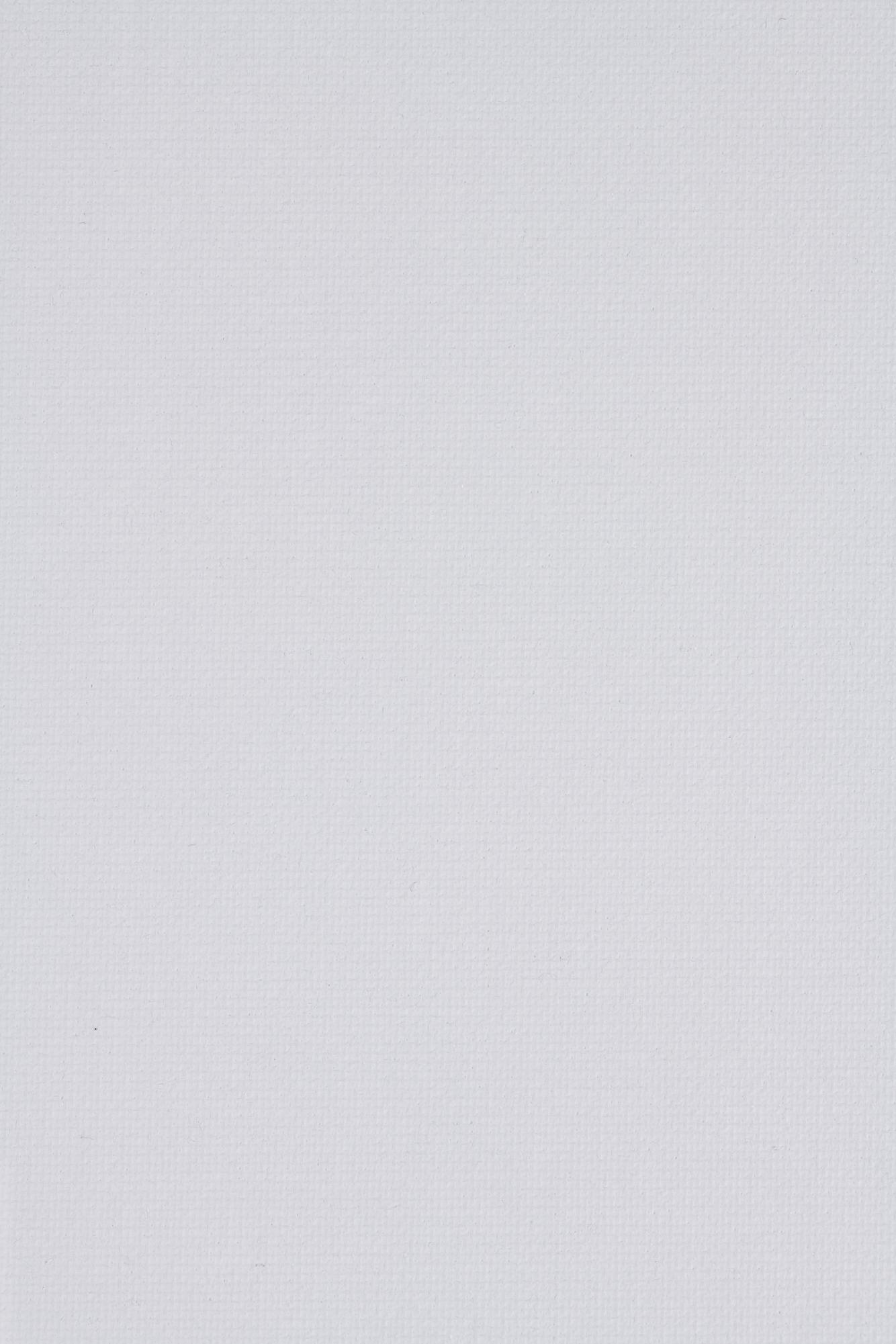

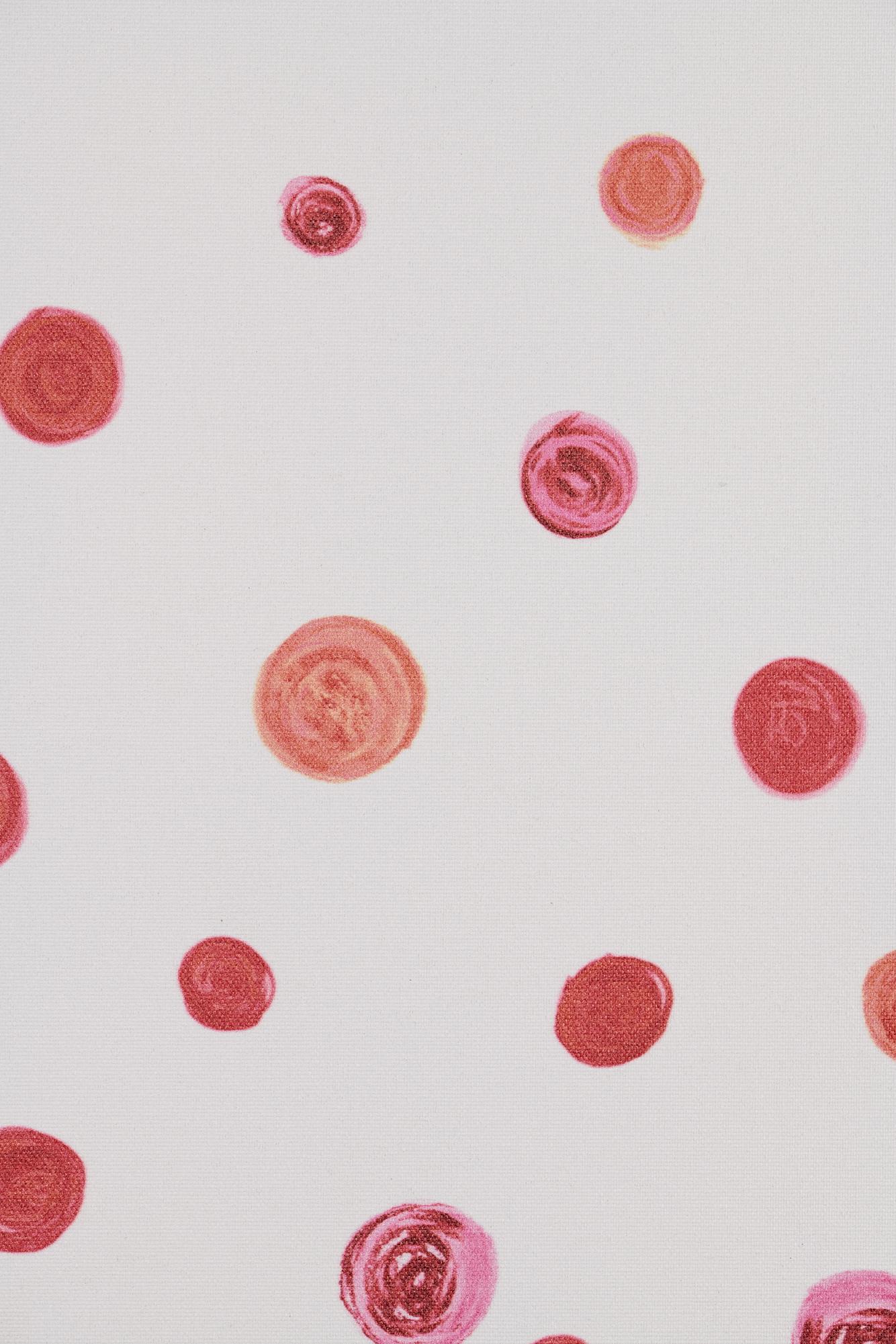

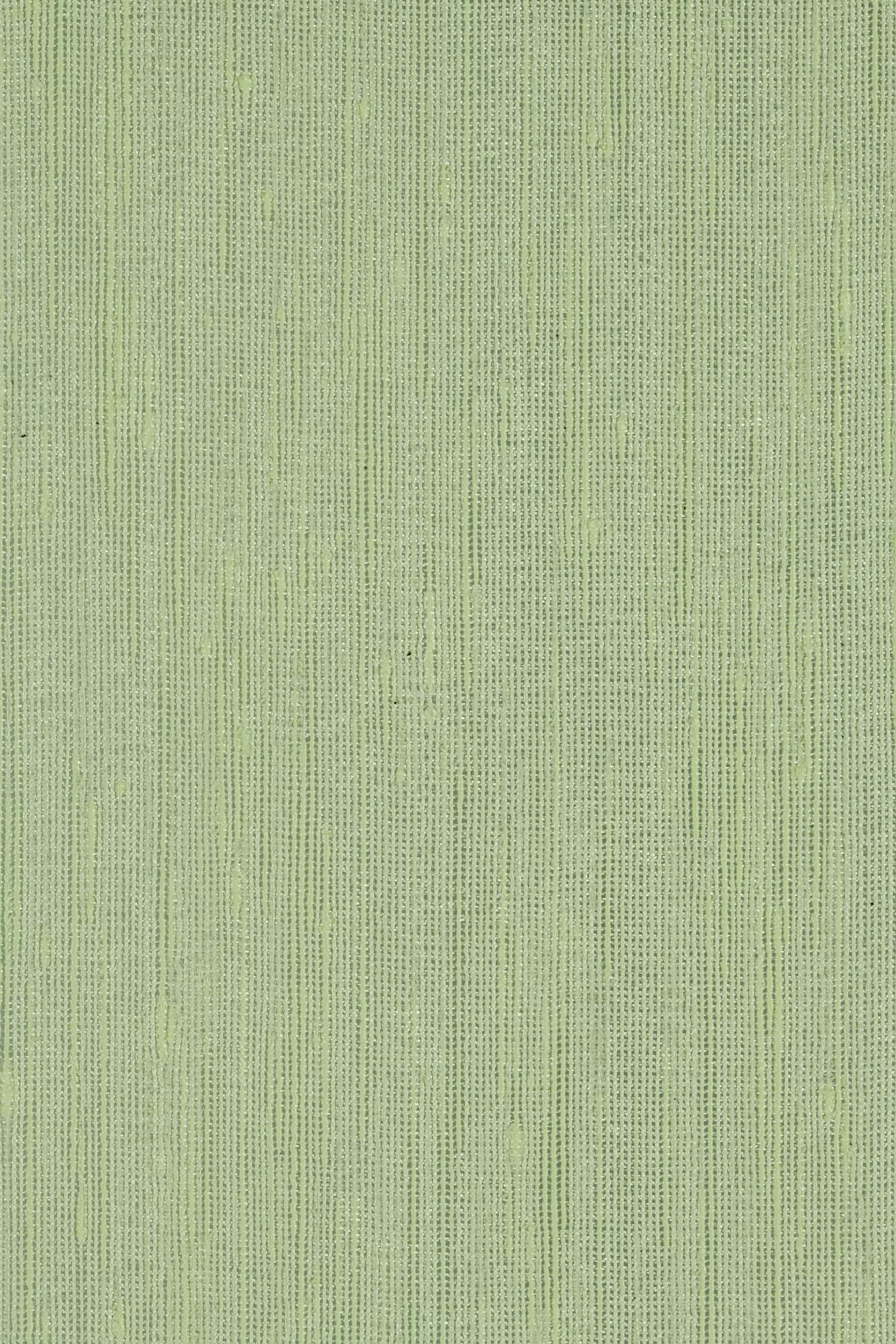

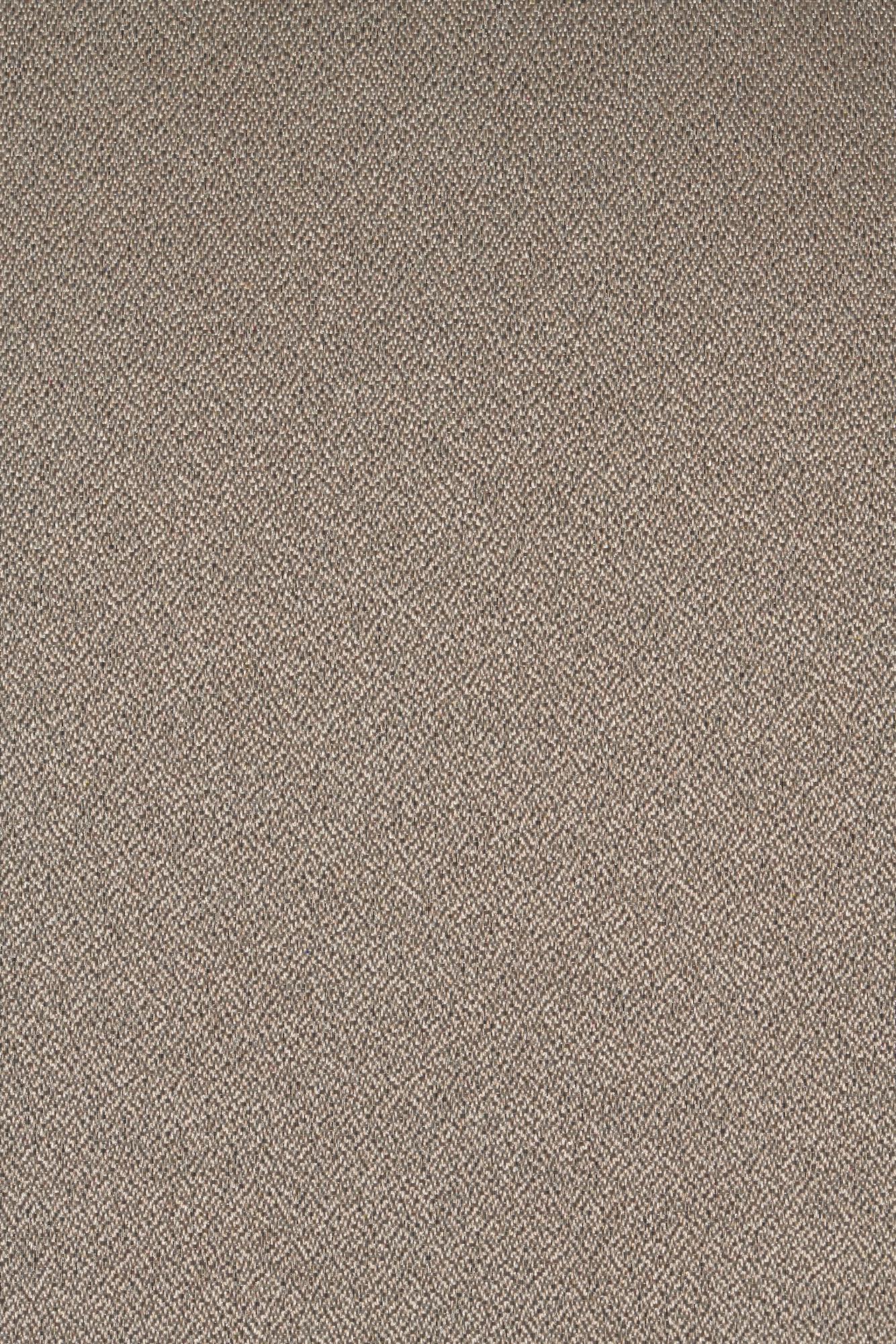

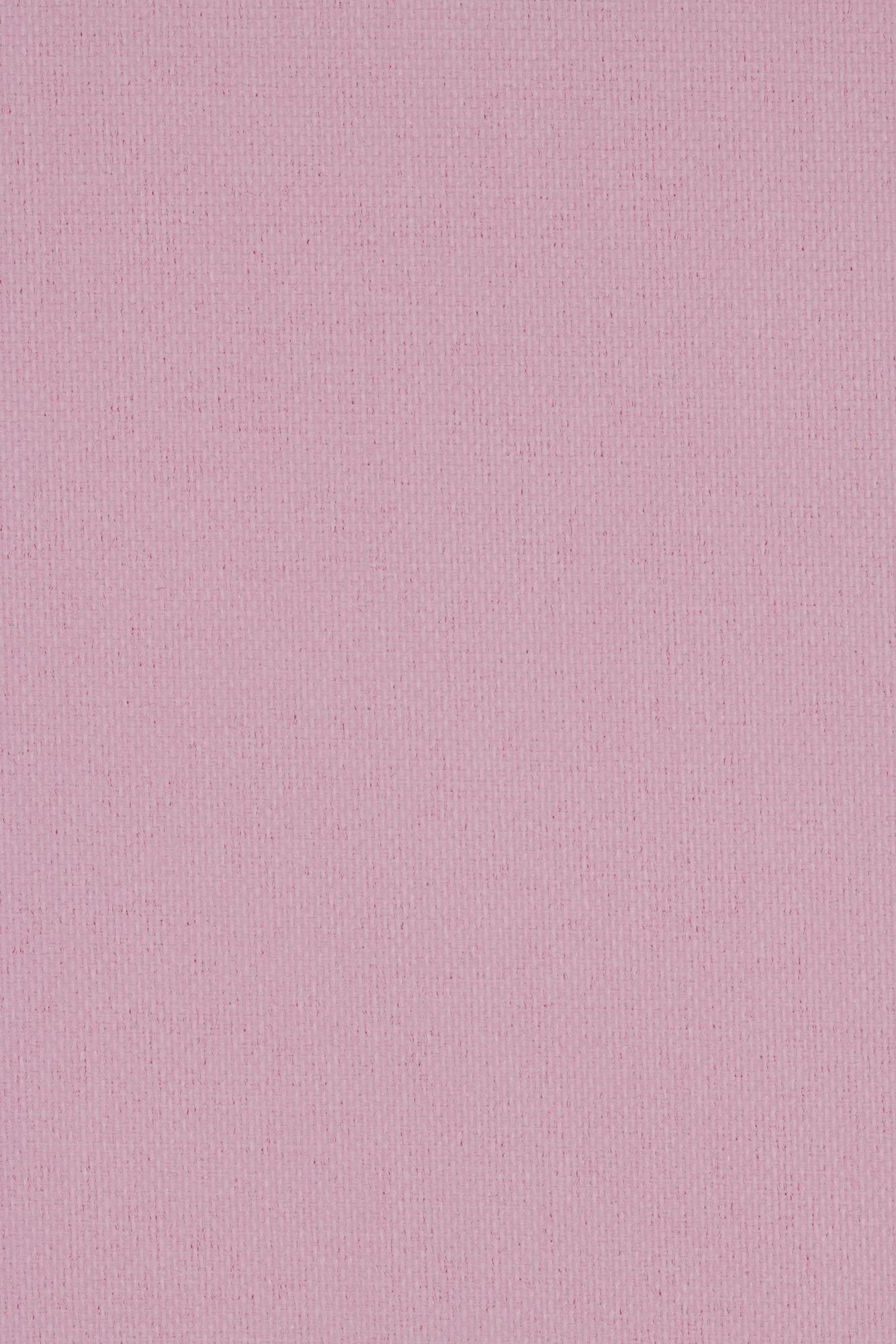

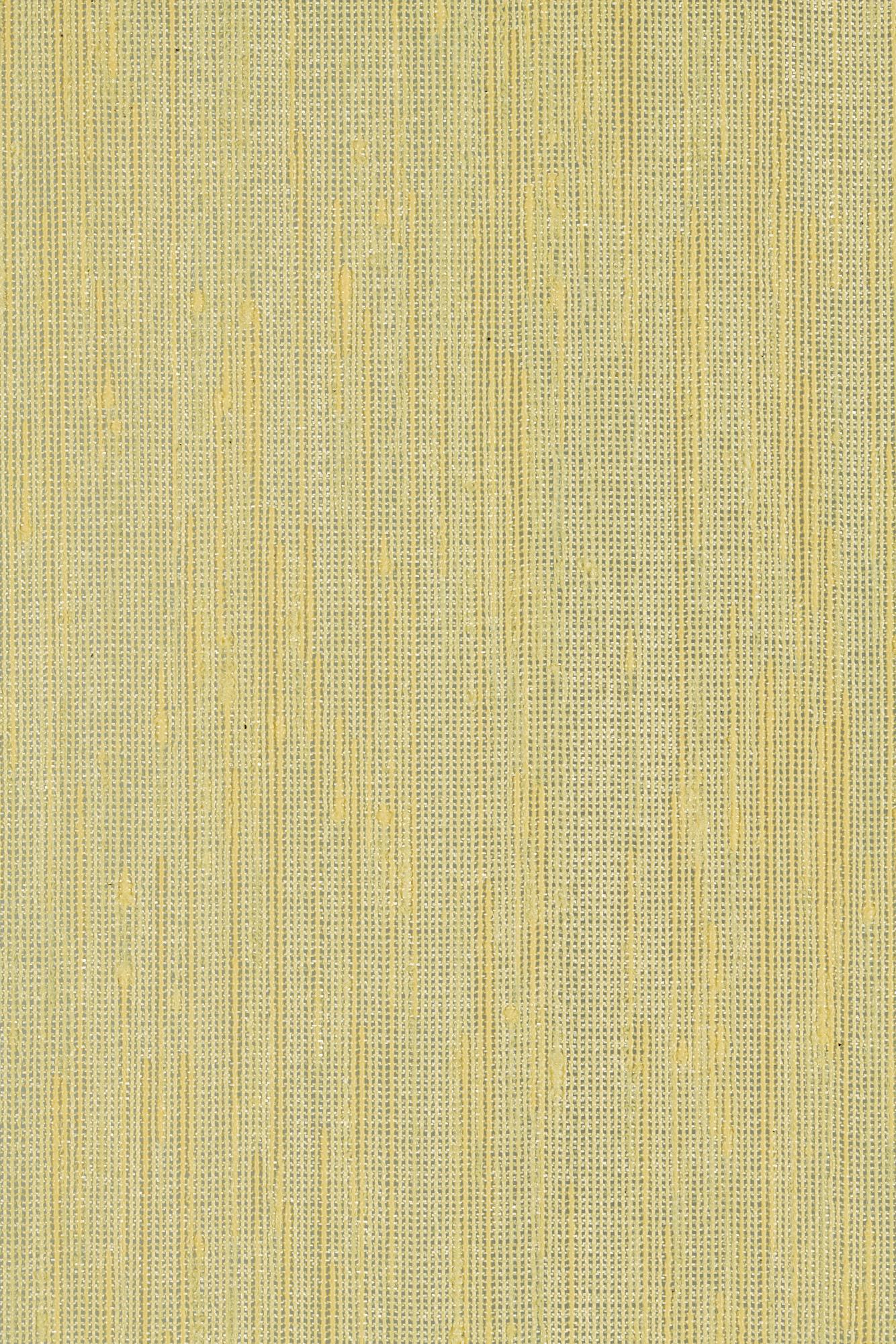

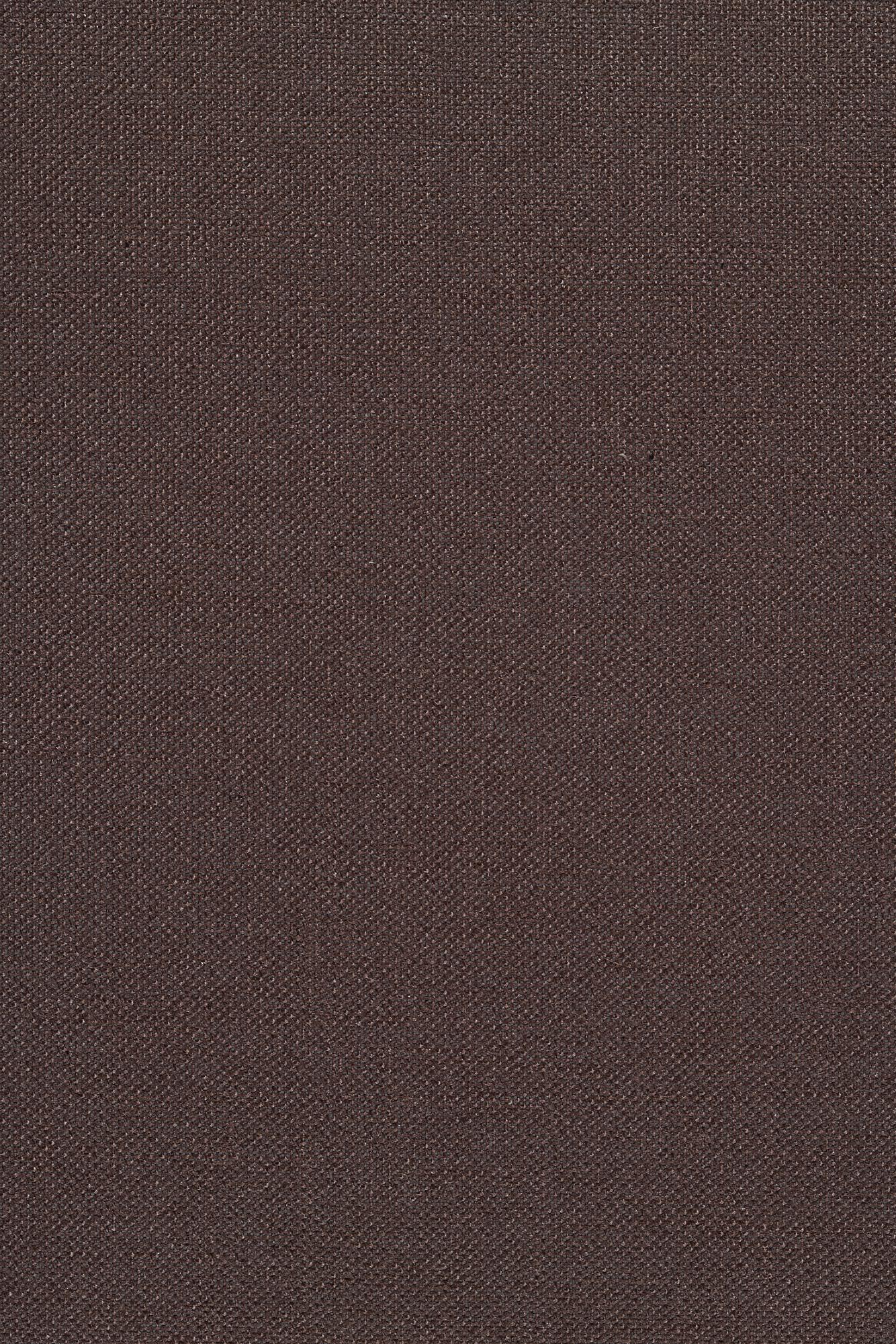

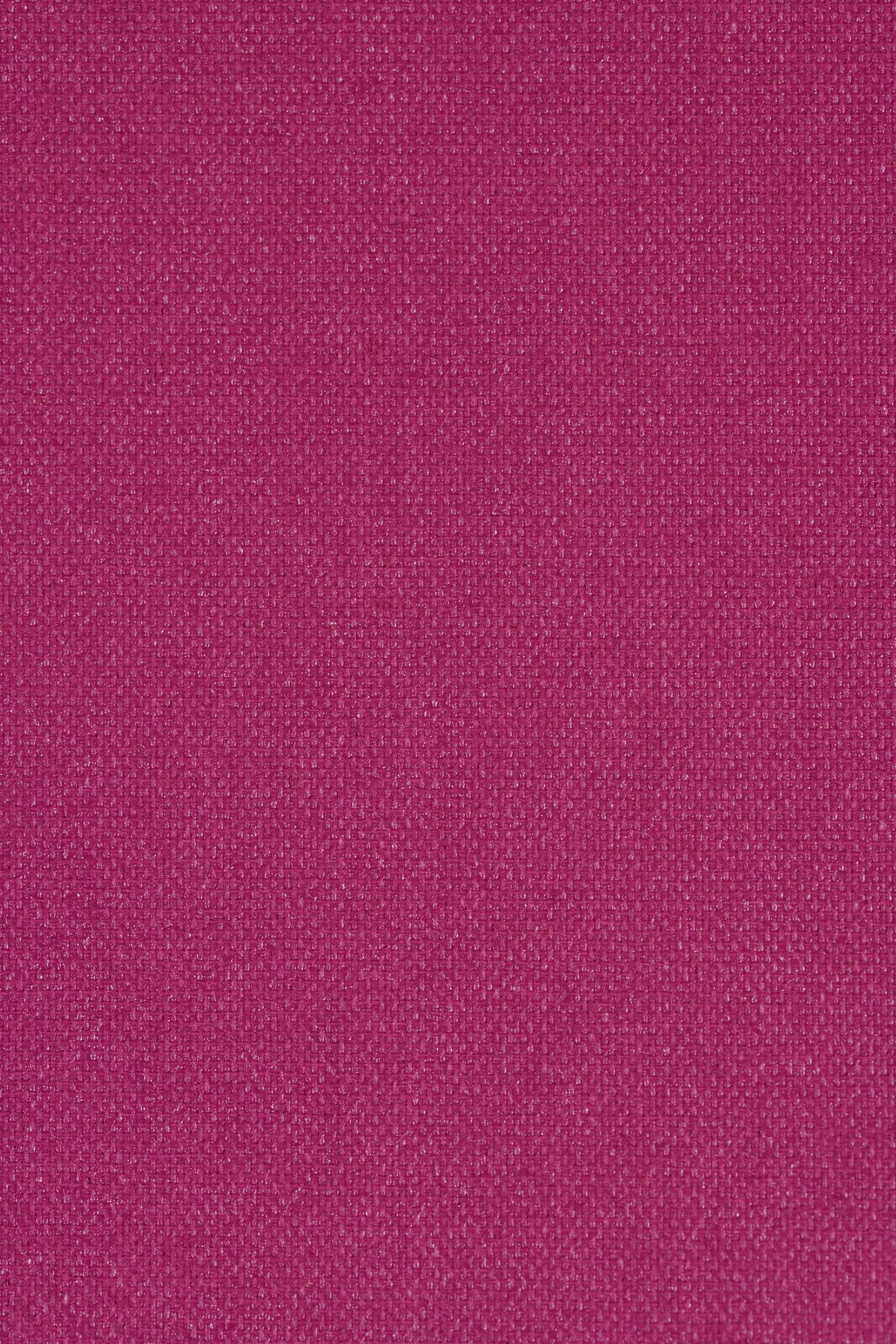

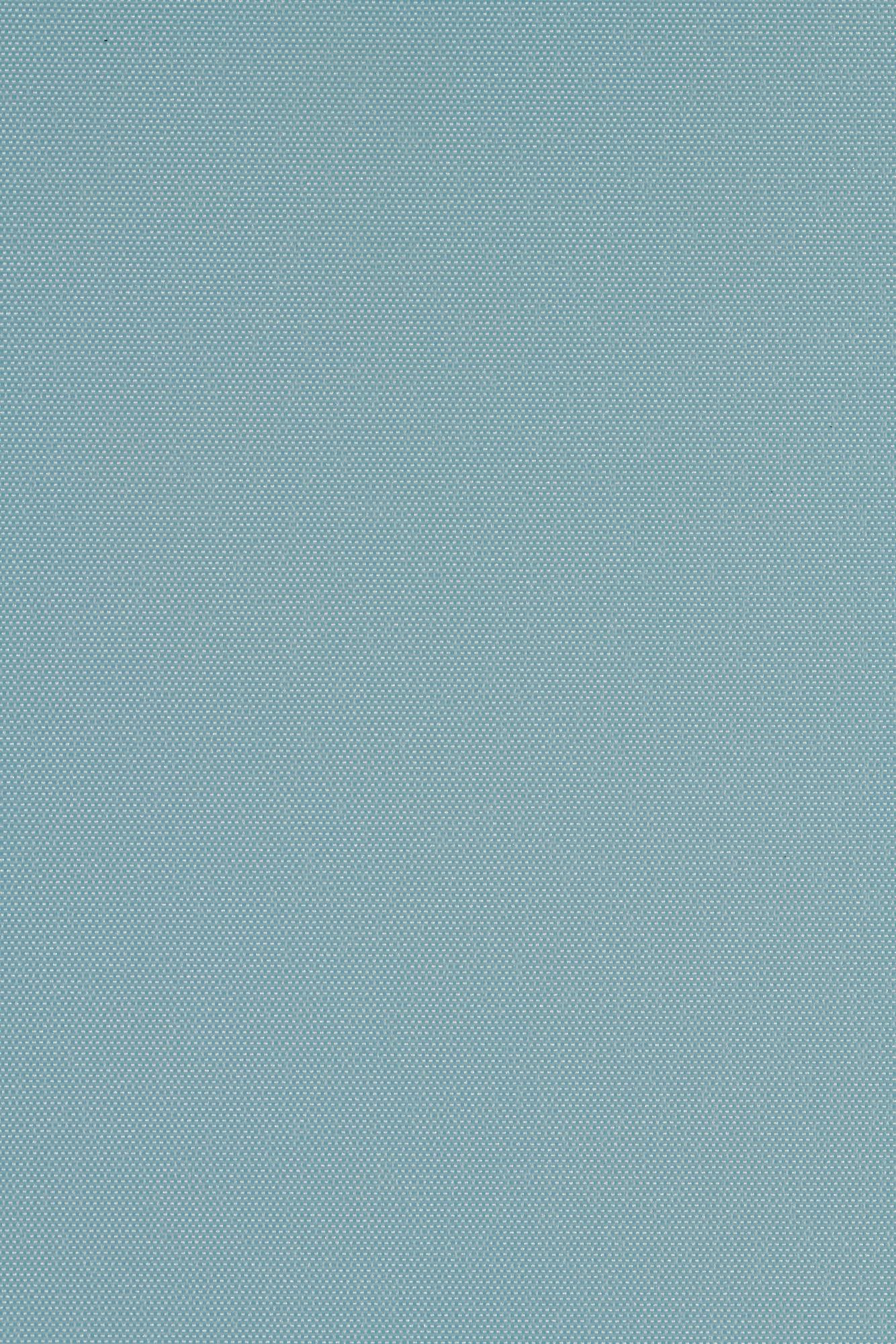

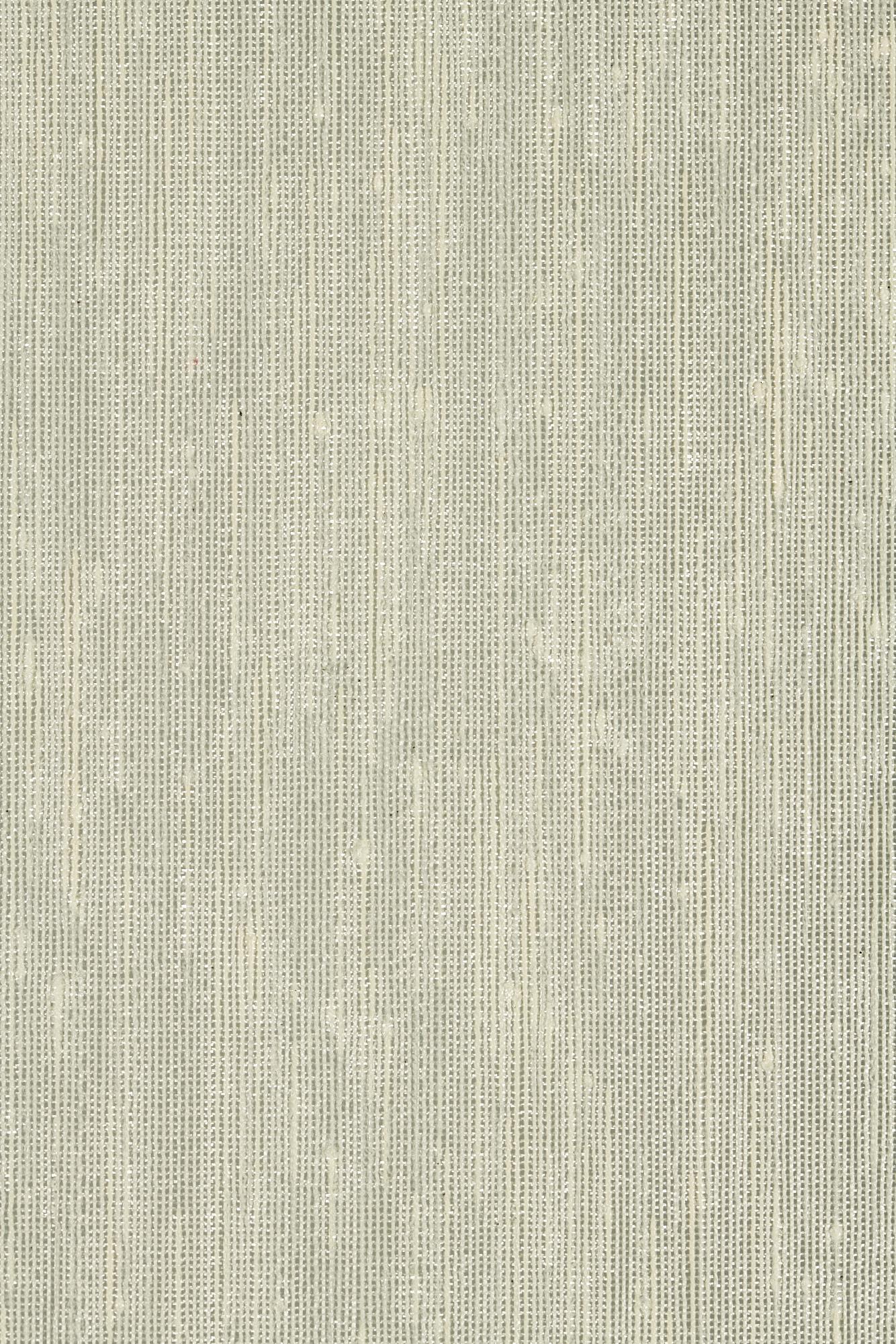

Colour variants

clearance sale clearance sale
temporarily unavailable temporarily unavailable
Material design: 100% PES, 100% TREVIRA CS, GLASS FIBRE-PVC, PES/CV, PES/VISCOSE, PES/PA, PVC/PES

We also offer printing on fabrics with your logo, pattern, design, photo, etc.
Calculation and consultation with our sales representative is required for each print.
Printing on fabrics is possible from the following collections only:Tecno, Carina, Opera, Eko, Cloud, Carina BO color, Como, Mexico, New York, Starflex DIM, Sunblock, Sunmate, Veroglim, Verosafe, Creppe, Starlet DIM.

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods

Handling

manually
by a plastic or metallic chain (Ø 4,5 mm)
electric drive
remote control or switch

Guaranteed dimensions

Roller blind with a cover profile Width (mm) Height (mm) Max. guaranteed area
(m2)
min. max. max.
Verra semi tube 28 300 / 500 (motor) 2000 5000 (2600) 4,4

Dimensions in the table apply to a 0.3 mm thick fabric. Dimensions in brackets apply to the heaviest fabric (0.7 mm thick).

Day-night fabrics Width (mm)* Height (mm)* Max. guaranteed area
(m2)
min. max. max.
Verra semi tube 28 300 / 500 (motor) 2000 800 (1700) 5,3 (3,4)

*the first number applies to Corfu 110 g/m2 fabric, the number of brackets applies to Cyprus 167 g/m2 fabric.

Technical parameters

Assembly profile (with clap) Lower profile Lower profile (day-night)* Assembly
Business name DRC-02 RBR-F-A-43 RBR/1 9010, RBR/1 PU52 DRC-07 + DRC 09 in front of window aperture (wall)
in window aperture (ceiling)
Dimension (mm) 67 × 57 15 × 30 39 × 17 Ø 15
Material Al Al Al Al
Cross-section Řez profilu Řez profilu Řez profilu Řez profilu
Colour white
elox
white
elox
elox

*for Rhodos fiber – only DRC07 bottom slat.

Assembly variants

  • on the wall
  • to the ceiling
